GCIS Sewer Pump Station's Condition Assessments

Project Date: 2026

Project Location: City of gold coast

Project Overview

HM Precision Engineering was engaged by GCI Solutions to undertake a comprehensive condition assessments of 25 sewer pump stations across the City of Gold Coast, supporting the councils understanding of asset condition and informing future maintenance, renewal and upgrade planning.

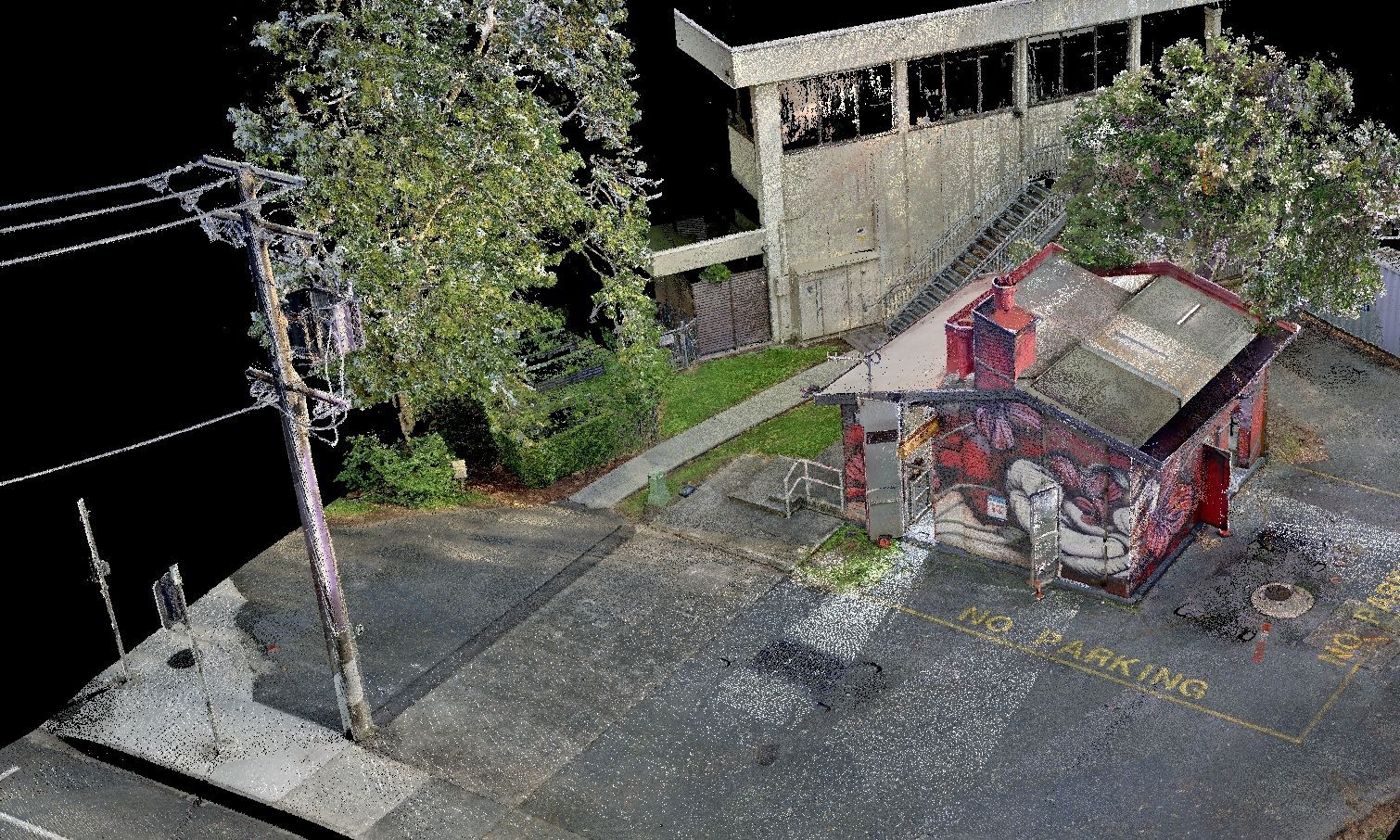

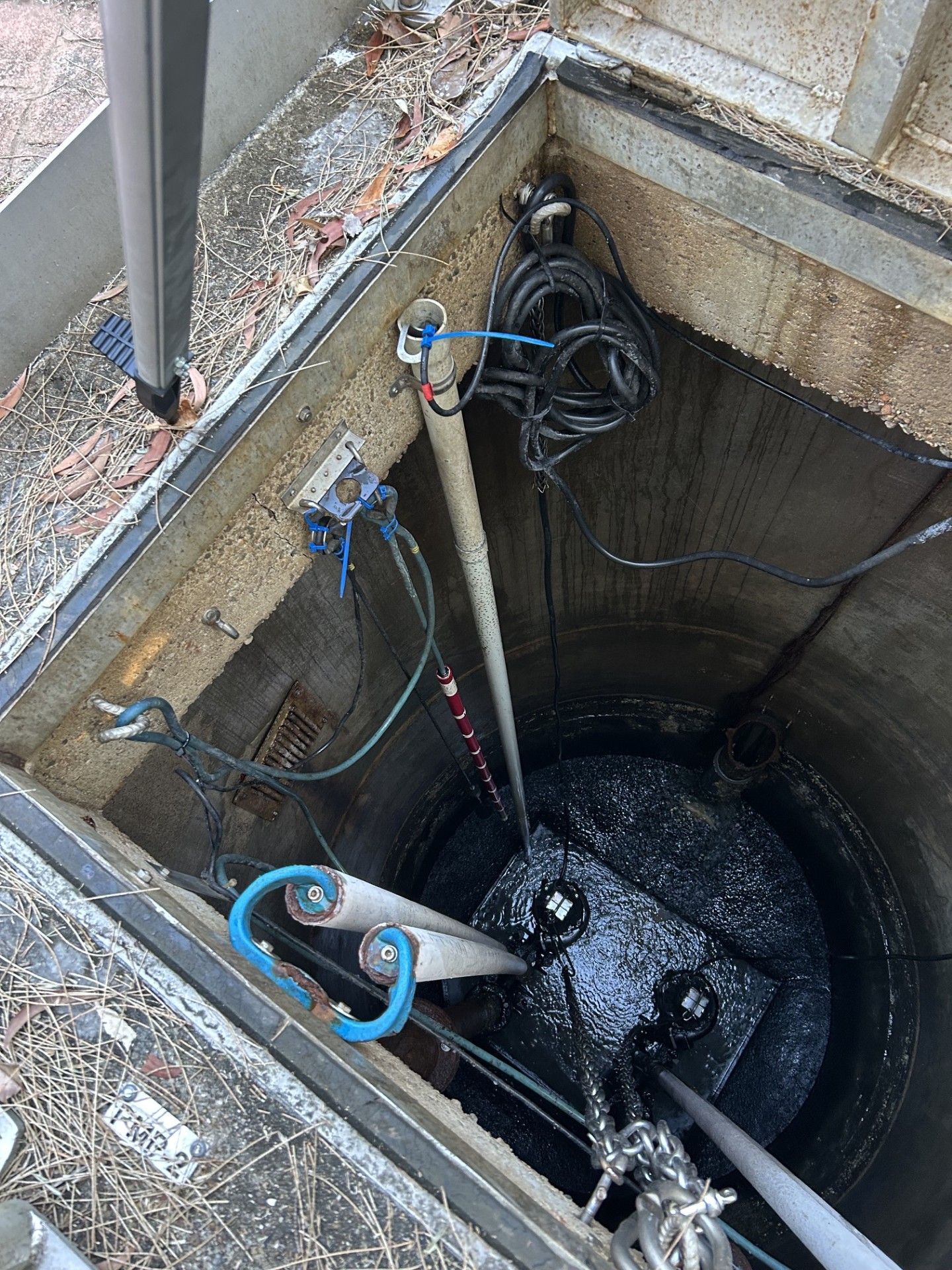

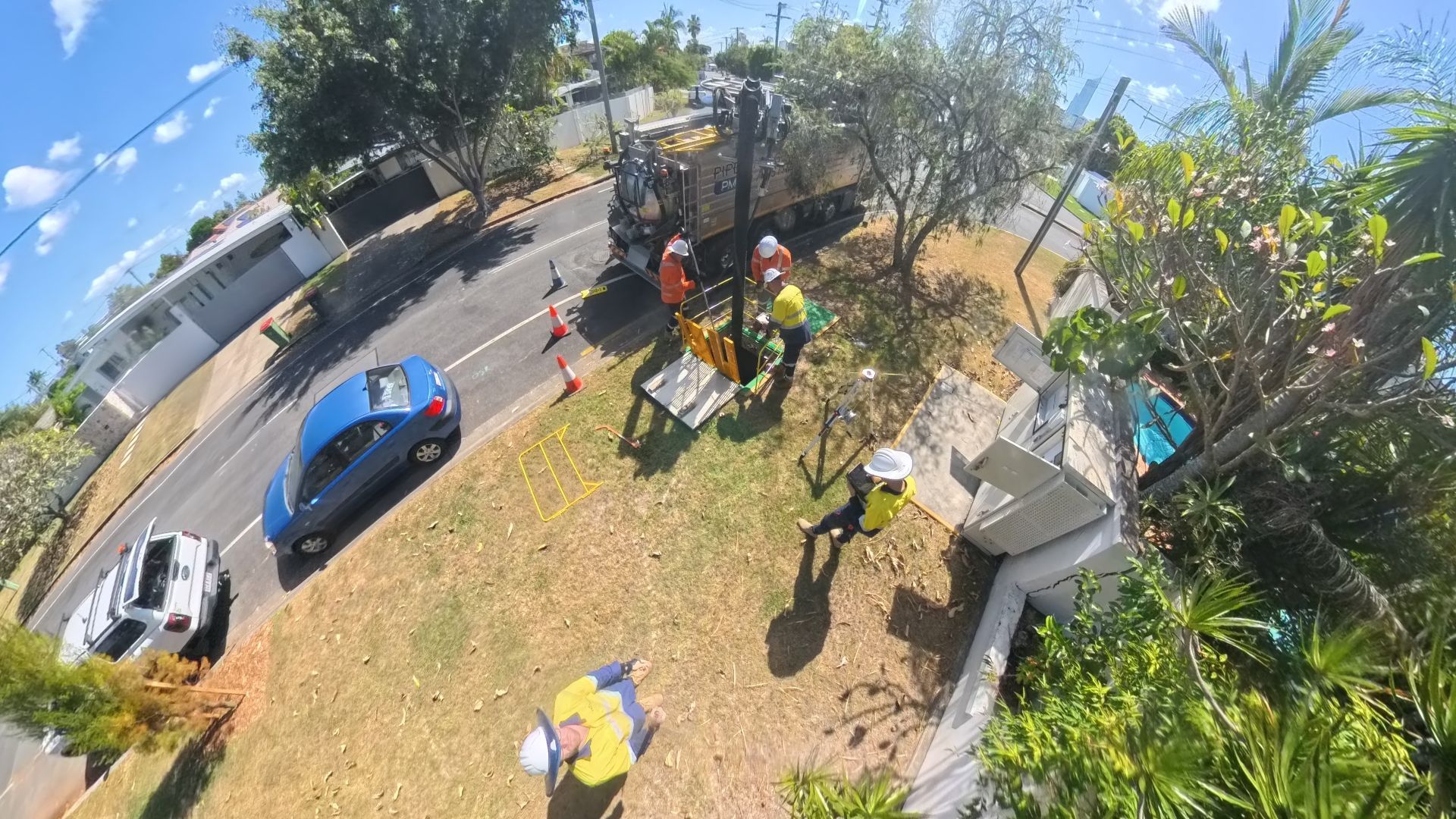

The project involved coordinated pump station shutdowns to facilitate detailed on-site inspections, visual condition assessments, 3D laser scanning and ultrasonic pipe thickness testing. Findings from these investigations informed bypass feasibility assessments, Process and Instrumentation Diagram (P&ID) development, and detailed condition assessment reports, providing a robust basis for future asset management and capital works planning.

HM Precision Engineering services included:

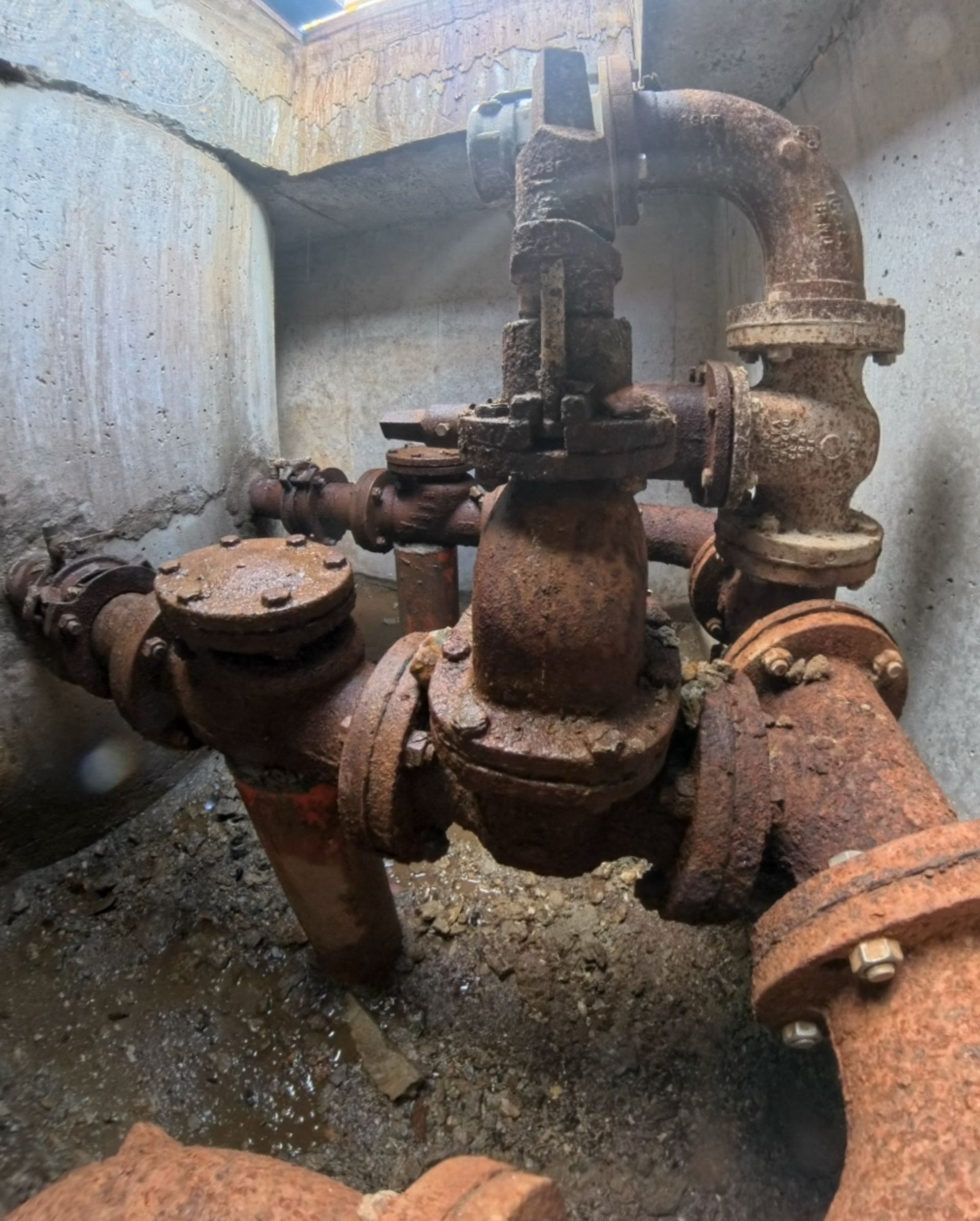

• Visual Inspection and Condition Assessment
• Ultrasonic Pipe Scanning

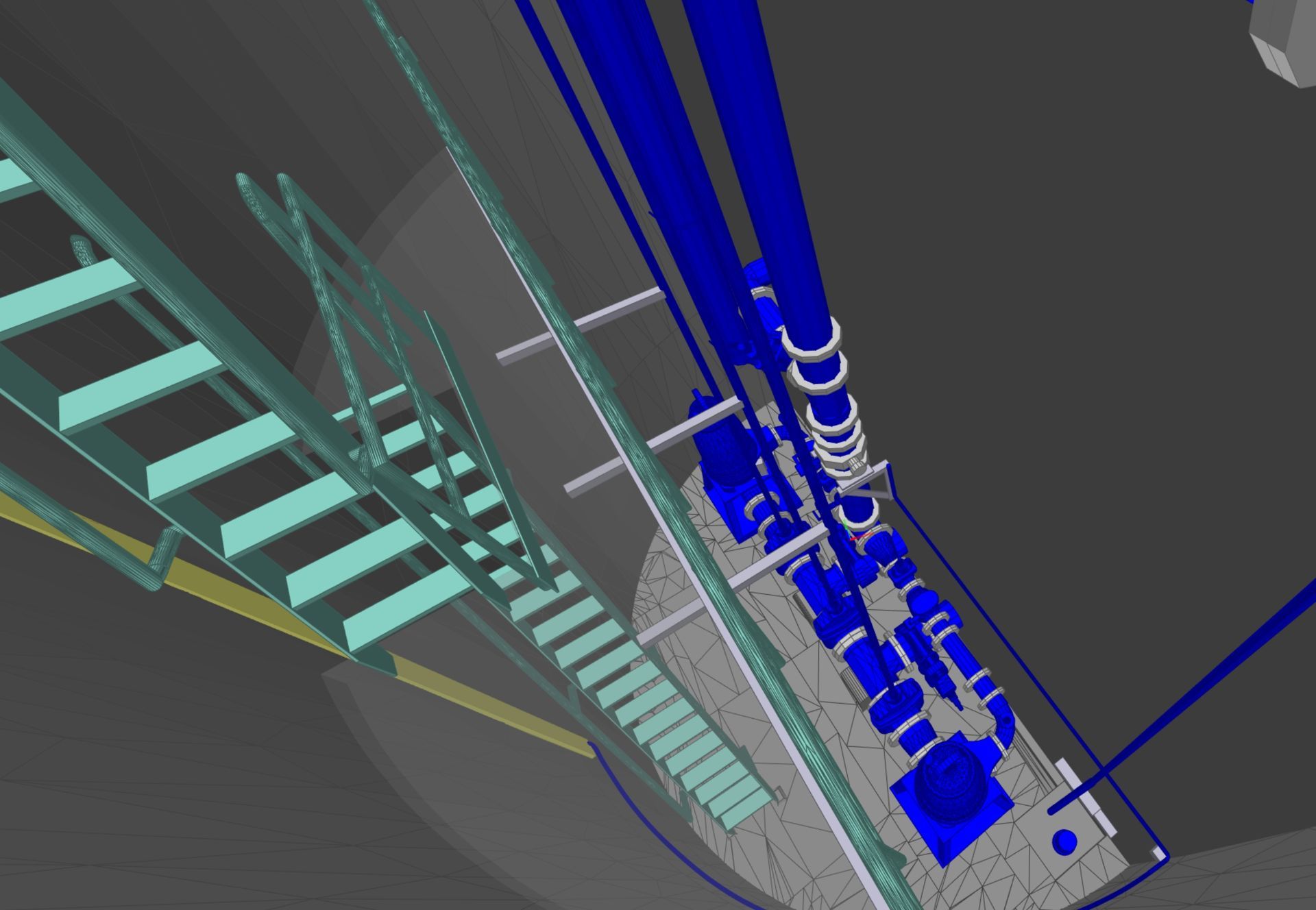

• 3D Scanning Surveying and As Constructed General Arrangement Drawings
• Detailed Condition Reporting
• Bypass Feasibility Assessment
• Process & Instrumentation As Constructed Drawings
